Flow Through Cells
A variety of flow through cells in different configurations for spectrophotometric experiments where a constantly flowing sample can be passed through the observation chamber.

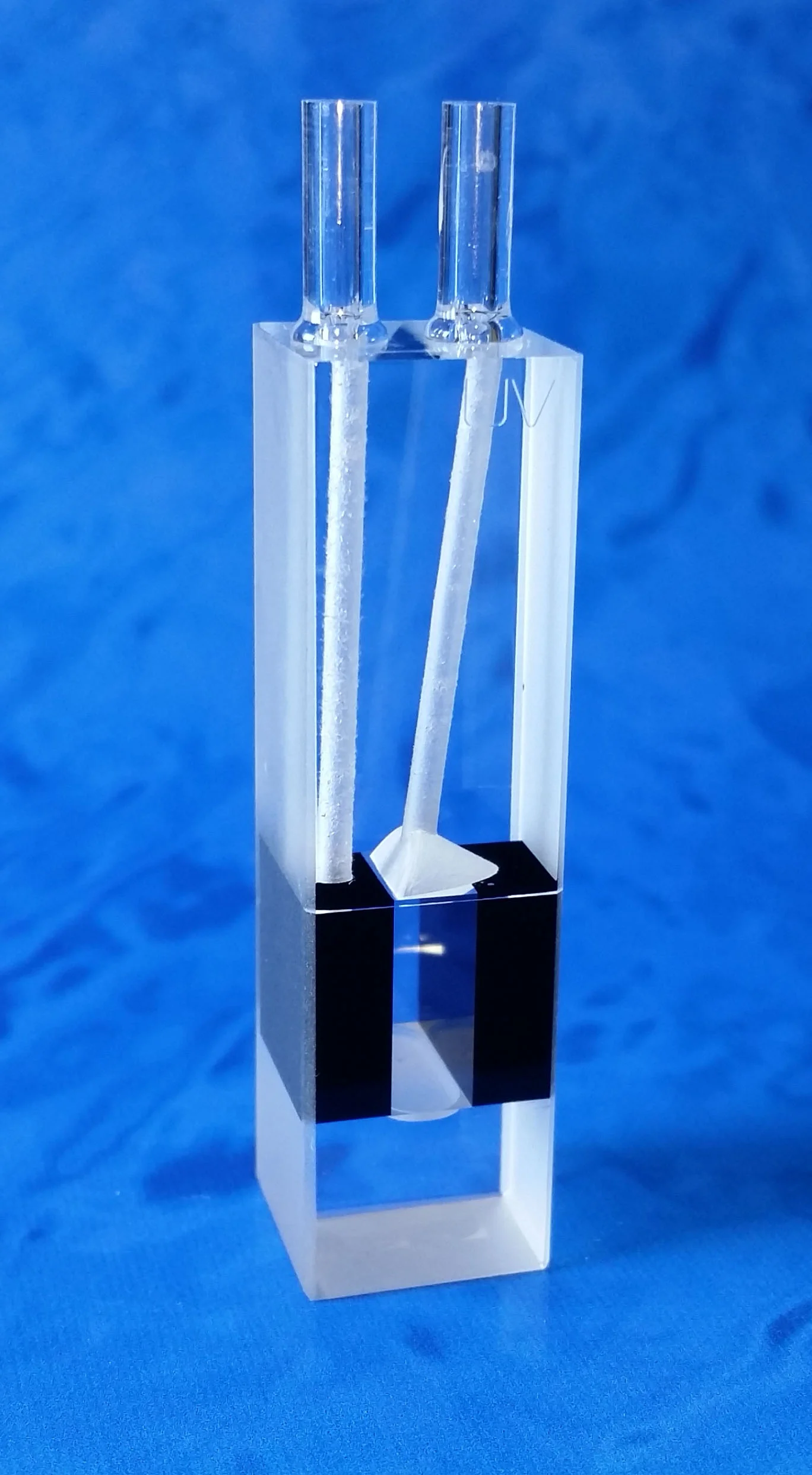

Type 59M Micro Black Flow Through Cell (Lightpath: 10mm)
![59MUV10.jpg](https://images.squarespace-cdn.com/content/v1/5411d5c0e4b02e1c8b27565a/1426622538124-8HUBFKL2T8TP7XEQ3OJD/59MUV10.jpg)
![59MUV10.jpg](https://images.squarespace-cdn.com/content/v1/5411d5c0e4b02e1c8b27565a/1426622538124-8HUBFKL2T8TP7XEQ3OJD/59MUV10.jpg)
Type 59M Micro Black Flow Through Cell (Lightpath: 10mm)
FireflySci's black micro spectrophotometer flow cell.
Features of FireflySci Type 59M Micro Black Flow Through Cell:
- Highly accurate results, only need to test sample once.
- Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
- Made by hand, ensuring high quality optical polishing with no defects.
- Each cell goes through a rigorous inspection process before leaving our factory.
- Fire-fused to ensure that cuvettes are robust and durable.
- Comes in several different materials: (UV Quartz and IR Quartz)
- Available in 10mm lightpath
- Two windows polished
- Inlet/outlet tube dimensions: OD 3mm x ID 1.5mm x L 8mm
- Tubes are made of quartz
Lightpath | Outer Length | Outer Width | Outer Height | Chamber Length | Chamber Width | Chamber Height | Z-Dimension | Capacity |
---|---|---|---|---|---|---|---|---|
10mm | 12.5mm | 12.5mm | 45.0mm | 10.0mm | 4.0mm | 11.0mm | 15.0mm | 0.440ml |
