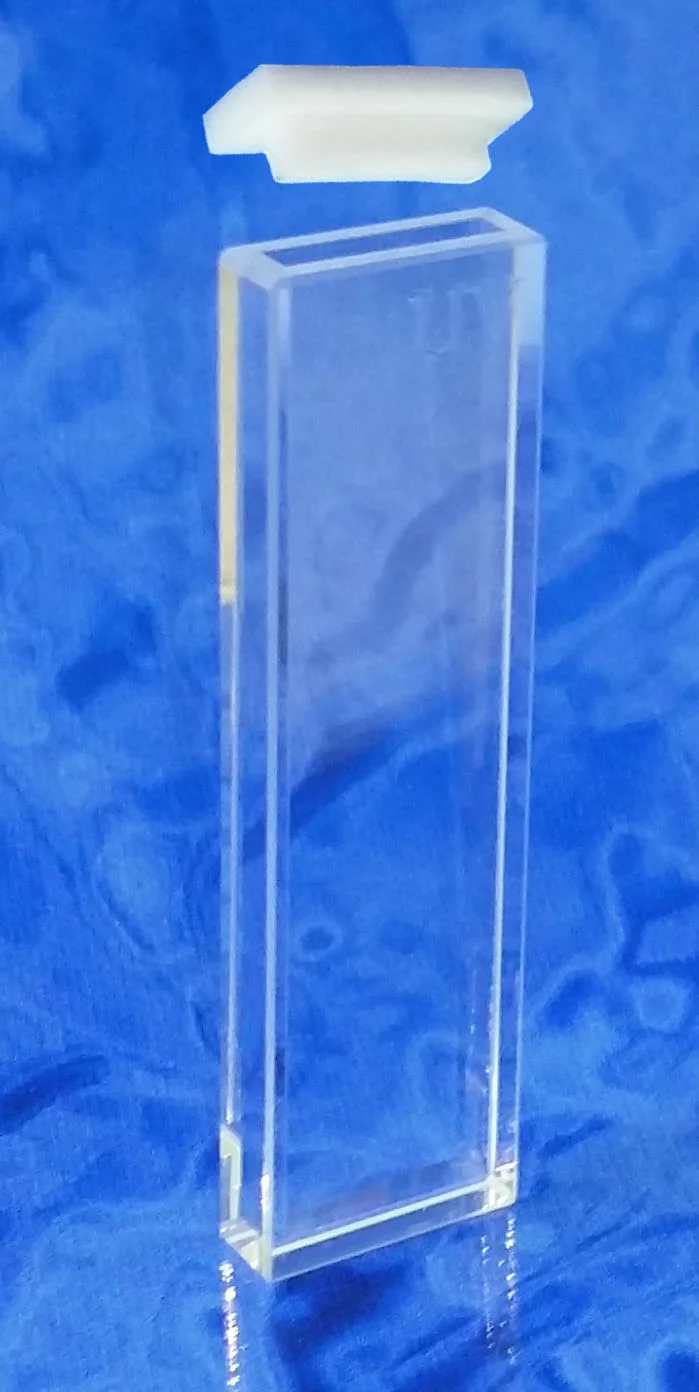

Type 1FL Macro Fluorescence Cuvette with PTFE Cover (Lightpaths: 1-100mm)


Type 1FL Macro Fluorescence Cuvette with PTFE Cover (Lightpaths: 1-100mm)

from $87.00

Firefly's basic cuvette for fluorometric applications. This cell is the same build as the Type 1 with the only difference being that all four sides and the base are polished.

Lightpath:
Material:
Quantity:
Add To Cart

Features of FireflySci Type 1FL Fluorometer Cuvette:

  • Highly accurate results, only need to test sample once.
  • Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
  • Made by hand, ensuring high quality optical polishing with no defects.
  • Each cell goes through a rigorous inspection process before leaving our factory.
  • Fire-fused to ensure that cuvettes are robust and durable.
  • Comes in several different materials: (Optical Glass, Pyrex Glass (10mm only), UV Quartz, IR Quartz)
  • Lightpaths from 1-100mm available
  • Four windows and base optically polished.
  • Includes PTFE cover.
LightpathTopOuter LengthOuter WidthOuter HeightInner LengthInner WidthCapacity
1mmPTFE Cover3.5mm12.5mm45.0mm1.0mm10.0mm0.400ml
2mmPTFE Cover4.5mm12.5mm45.0mm2.0mm10.0mm0.700ml
5mmPTFE Cover7.5mm12.5mm45.0mm5.0mm10.0mm1.700ml
10mmPTFE Cover12.5mm12.5mm45.0mm10.0mm10.0mm‏3.500ml
20mmPTFE Cover22.5mm12.5mm45.0mm20.0mm10.0mm7.000ml
30mmPTFE Cover32.5mm12.5mm45.0mm30.0mm10.0mm10.500ml
40mmPTFE Cover42.5mm12.5mm45.0mm40.0mm10.0mm14.000ml
50mmPTFE Cover52.5mm12.5mm45.0mm50.0mm10.0mm17.500ml
100mmPTFE Cover102.5mm12.5mm45.0mm100.0m10.0mm35.000ml
