Calibration Kits
Reference kits for NIST, NRC, US Pharmacopoeia and European Pharmacopoeia spectrophotometer validation. All standards are NIST traceable and prepared using NIST guidelines. Custom kits are available upon request.
Superband UV/VIS/NIR Photometric Accuracy & Linearity Kit (10%T, 30%T, 90%T) (200-3000nm)
Superband UV/VIS/NIR Photometric Accuracy & Linearity Kit (10%T, 30%T, 90%T) (200-3000nm)
Kit of three filters and a blank for validating photometric accuracy and linearity in the range of 200-3000nm
This kits includes the following filters.
Note: the performance and nominal absorbance/transmittance values of the calibration standards in this kit entirely complies with the requirements of SRM NIST 2031a kit while far exceeding its wavelength range and capabilities.
Capabilities:
Photometric accuracy in the UV and VIS range (200-3000nm)
Product Specs:
Optical densities: 0.04au (90%), 0.5au (30%), 1.0au (10%)
Wavelength Range: 200-3000nm. Certified wavelength points include 250, 360, 465, 546.1, 635, 1100, 1700, 2210, 2500 and 2850nm (in some cases, the wavelength point of 2850nm will need to be 2800, 2900 or 2950nm due to random material variance). Firefly can provide alternative points in the 200-3000nm range upon request or full scan data for informational purposes.
Tolerances: +/-0.0022 au
External Dimensions: 12.5 x 12.5 x 45 mm
Included with Kit:
Instruction manual

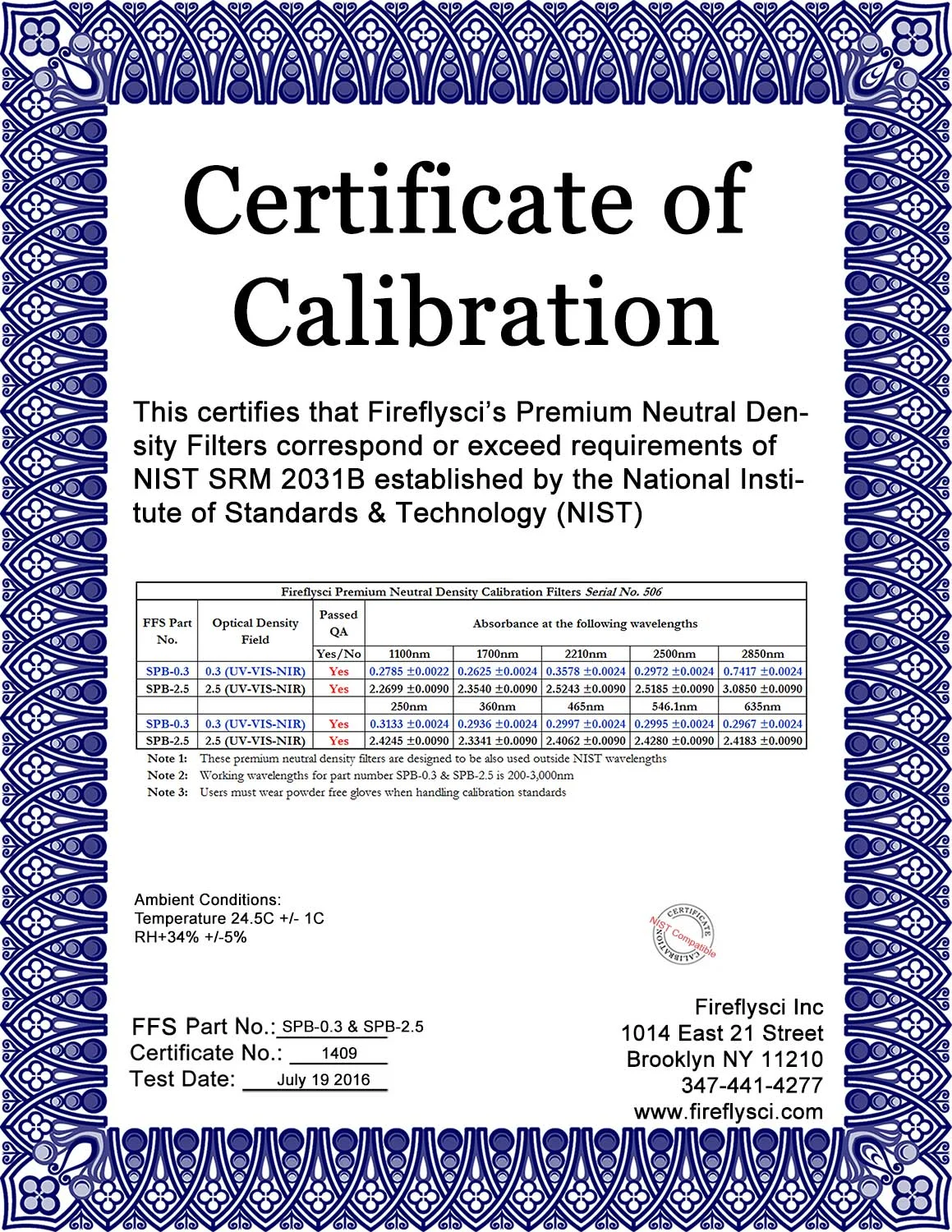

Certificates of calibration with NIST traceability
Photometric data tables are available for qualified customers. Please contact us for more information.
