Cylindrical Polarimeter Cells
Cells for use in polarimeters and spectrophotometers, which contain a cylindrically shaped sample chamber.

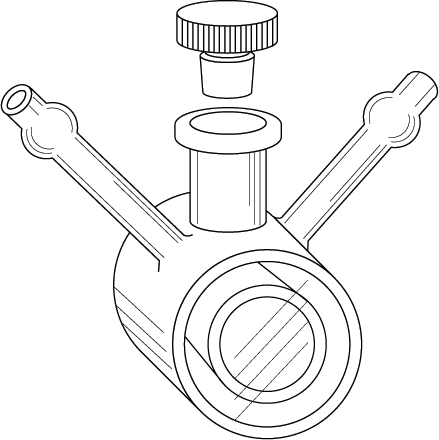

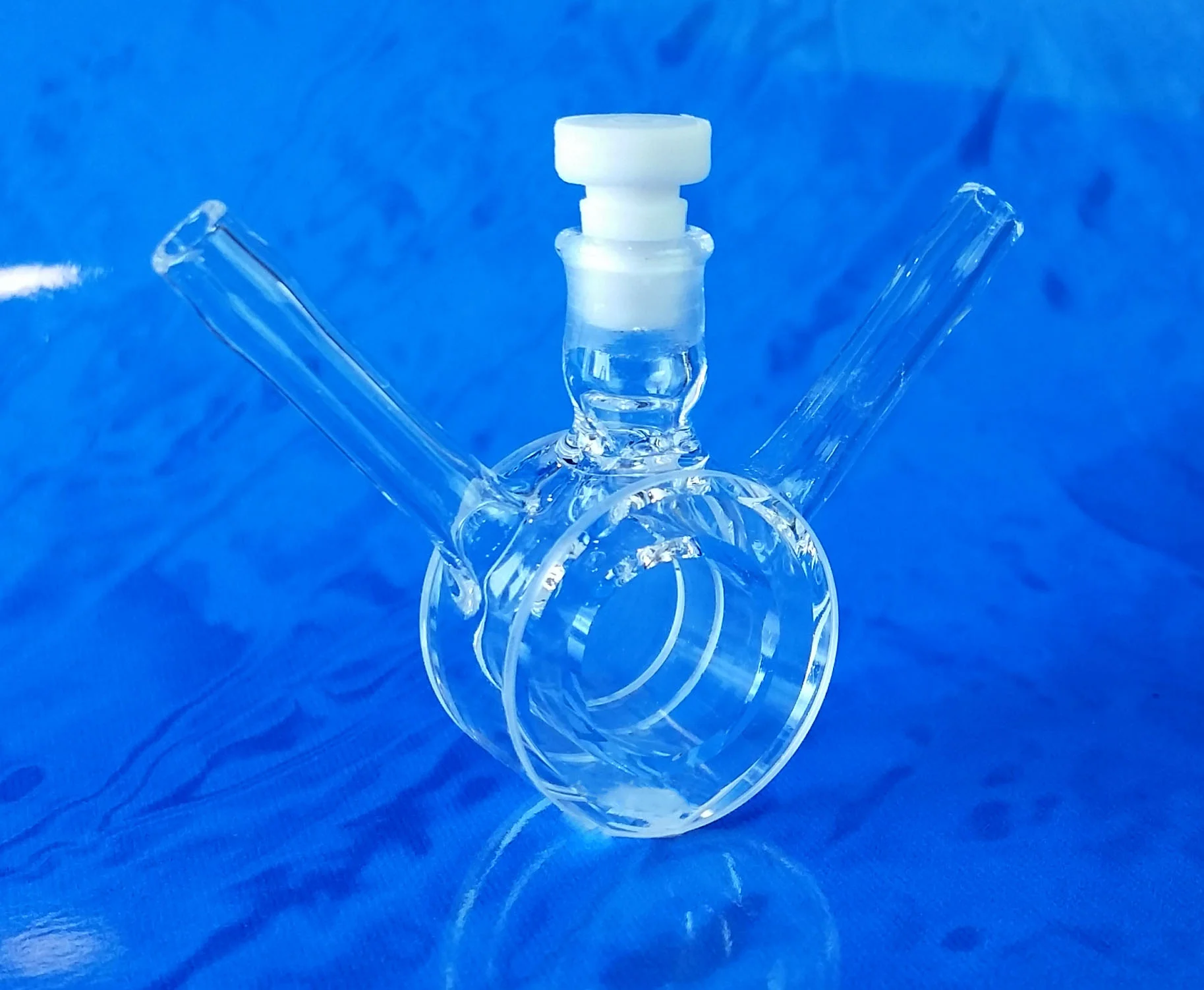

Type 50 Water Jacketed Cylindrical Polarimeter Cell with PTFE Stopper (Lightpaths: 5-50mm)
Type 50 Water Jacketed Cylindrical Polarimeter Cell with PTFE Stopper (Lightpaths: 5-50mm)
from $519.00
Firefly's cylindrical water jacketed polarimeter cell with PTFE stopper. The water jacket, which runs around the sample chamber will keep the chamber at a constant temperature.
Lightpath:
Material:
Quantity:
Features of FireflySci Type 50 Water Jacketed Cylindrical Polarimeter Cell:
- Highly accurate results, only need to test sample once.
- Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
- Made by hand, ensuring high quality optical polishing with no defects.
- Each cell goes through a vigorous inspection process before leaving our factory.
- Fire-fused to ensure that cuvettes are robust and durable.
- Available in UV Quartz
- Lightpaths from 5-10mm available
- Two windows optically polished.
- Contains tubes to water jacket. Dimensions: OD5 X ID3mm x L25mm.
| Lightpath | Top | Outer Length | Outer Height | Outer Diameter | Chamber Diameter | Chamber Length | Capacity |
|---|---|---|---|---|---|---|---|
| 5mm | PTFE Stopper | 32.0mm | 23.0mm | 23.0mm | 13.0mm | 5.0mm | 0.660ml |
| 10mm | PTFE Stopper | 32.0mm | 23.0mm | 23.0mm | 13.0mm | 10.0mm | 1.320ml |
