Type 49 Micro Demountable Flow Through Cell (Lightpaths: 0.05-2mm)


Type 49 Micro Demountable Flow Through Cell (Lightpaths: 0.05-2mm)

from $314.00

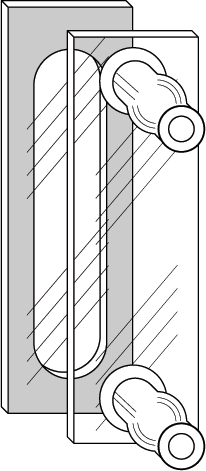

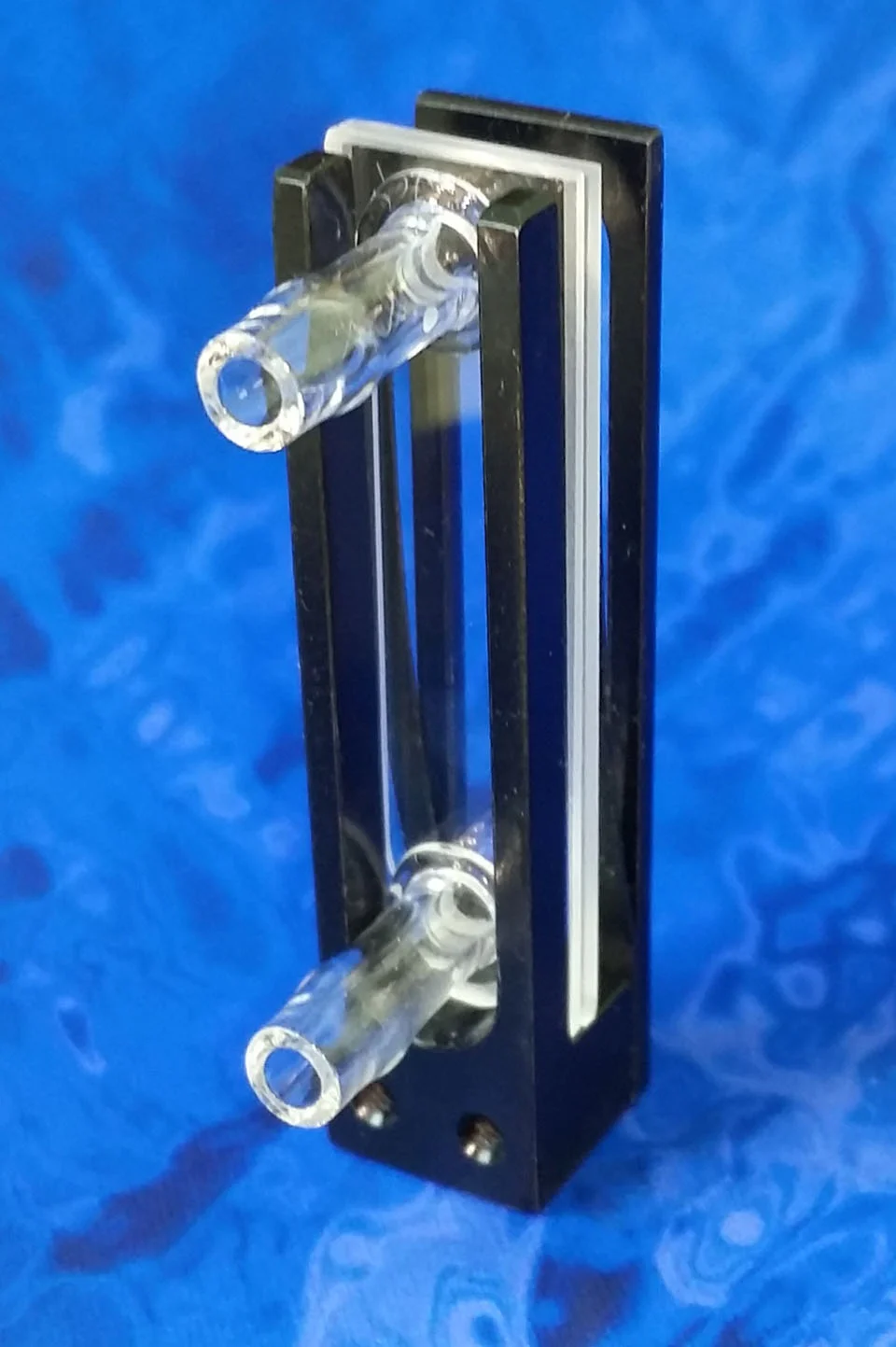

Firefly's Type 49 demountable flow through cell with sides tubes enables a constant flow through the observation chamber. The demountable slides enables a user to insert a small sample and reassemble the cuvette. These are popular among researchers who perform CD (Circular Dichroism) experiments.

Lightpath:
Material:
Quantity:
Add To Cart

Features of FireflySci Type 49 Micro Demountable Flow Through Cell:

  • Highly accurate results, only need to test sample once.

  • Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.

  • Made by hand, ensuring high quality optical polishing with no defects.

  • Each cell goes through a rigorous inspection process before leaving our factory.

  • Fire-fused to ensure that cuvettes are robust and durable.

  • Comes in several different materials: (UV Quartz & IR Quartz)

  • Lightpaths from 0.1-2mm available

  • Two windows optically polished.

  • Inlet/outlet tubes: OD 5mm x ID 3mm x L 15mm.

  • Thickness of cover slide is 1.25mm.

  • Tubes are made of quartz.

LightpathTopOuter LengthOuter WidthOuter HeightChamber LengthChamber WidthChamber HeightCapacity
0.05mmFlow Through2.60mm12.5mm45.0mm0.05mm9.0mm38.0mm15µl
0.1mmFlow Through2.60mm12.5mm45.0mm0.1mm9.0mm38.0mm30µl
0.2mmFlow Through2.70mm12.5mm45.0mm0.2mm9.0mm38.0mm60µl
0.5mmFlow Through3.00mm12.5mm45.0mm0.5mm9.0mm38.0mm150µl
1mmFlow Through3.50mm12.5mm45.0mm1.0mm9.0mm38.0mm300µl
2mmFlow Through4.50mm12.5mm45.0mm2.0mm9.0mm38.0mm600µl
