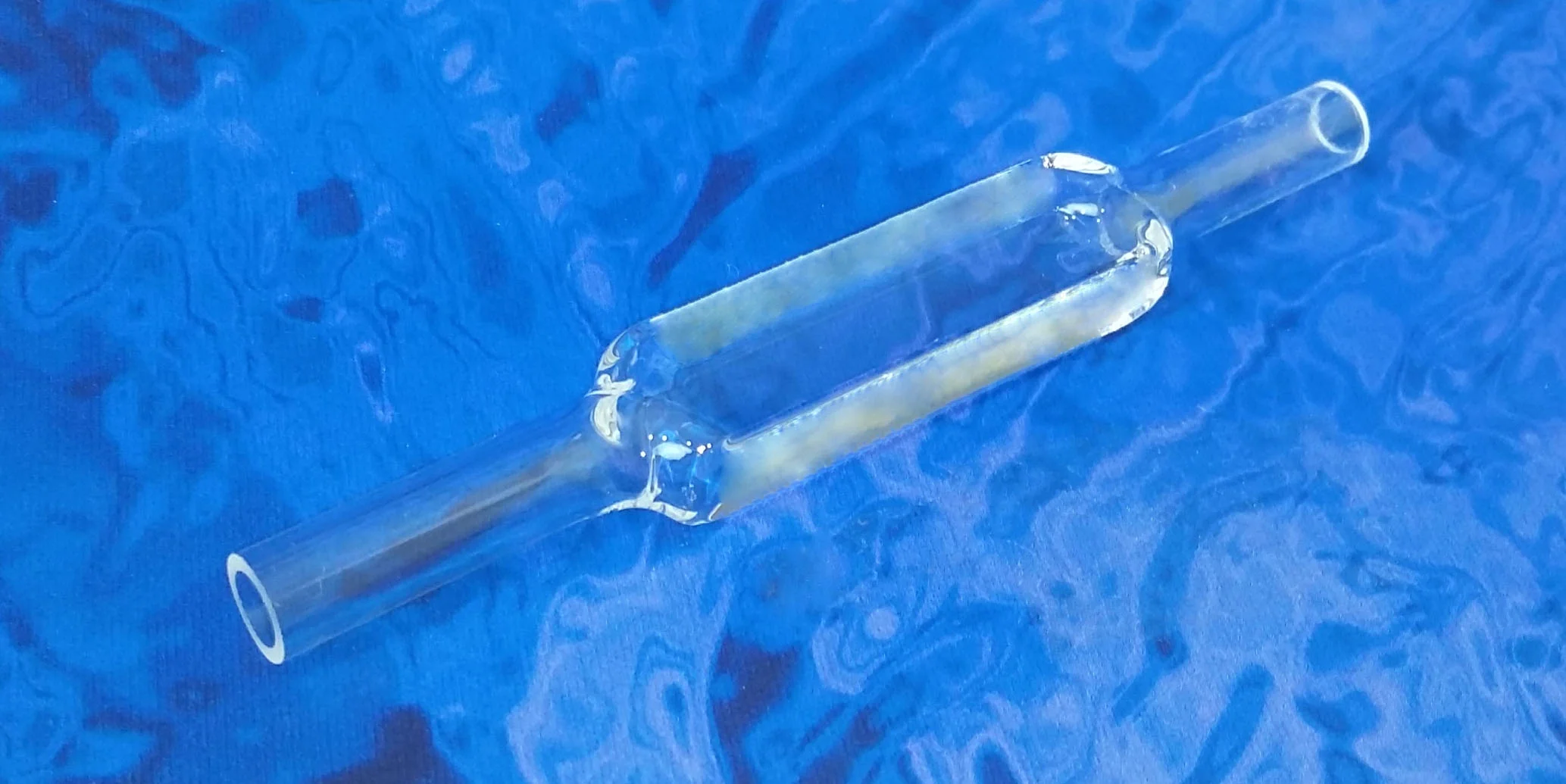

Type 55 Microscope Flow Through Cell (Lightpaths: 0.2-5mm)


Type 55 Microscope Flow Through Cell (Lightpaths: 0.2-5mm)

from $422.00

The FireflySci Type 55 cuvette is a flow through cell with a narrow channel. Excellent for microscope-based spectroscopic analyses.

Material:
Lightpath:
Quantity:
Add To Cart

Features of FireflySci Type 55 Microscope Flow Through Cell:

  • Highly accurate results, only need to test sample once.
  • Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
  • Made by hand, ensuring high quality optical polishing with no defects.
  • Each cell goes through a vigorous inspection process before leaving our factory.
  • Fire-fused to ensure that cuvettes are robust and durable.
  • Comes in UV Quartz
  • Lightpaths from 0.2-5mm available
  • Two windows optically polished.
  • Inlet/outlet tubes: OD7mm x ID5mm x L25mm
  • Tubes are made of quartz
  • Flows through with top and bottom tubes
LightpathTopOuter LengthOuter WidthOuter HeightInner LengthInner WidthInner HeightCapacity
0.2mmFlow Through2.7mm12.5mm90.0mm0.2mm10.0mm40.0mm0.080ml
0.5mmFlow Through3.0mm12.5mm90.0mm0.5mm10.0mm40.0mm0.200ml
1.0mmFlow Through3.5mm12.5mm90.0mm1.0mm10.0mm40.0mm0.400ml
2.0mmFlow Through4.5mm12.5mm90.0mm2.0mm10.0mm40.0mm0.800ml
5.0mmFlow Through7.5mm12.5mm90.0mm5.0mm10.0mm40.0mm2.000ml
