Sub-Micro Cuvettes
Fluorescence cells with sub-micro capacities (0.010-0.350ml)
Type 8830 HPLC Sub-Micro Flow Through Cell (Lightpath: 1mm)
Type 8830 HPLC Sub-Micro Flow Through Cell (Lightpath: 1mm)
$1,855.00
FireflySci's solution for sub-micro fluorimetry applications. Great for use in HPLC.
Quantity:
Features of 8830 HPLC Sub-Micro Flow Through Cell:
- Designed to facilitate the monitoring of HPLC fractions whilst using a spectrofluorometer.
- The sample cavity is constructed so that the sample volume is kept to a minimum ( 20 micro liters nominal).
- Has a large aperture capable of accepting the full exciting and fluorescent radiation
- Contains a fluorescence free grade of fused silica, which is of a square cross section
- Flat sides ensure that any scattering of the incident radiation is kept to a minimum but still allows maximum throughput.
- Anodized aluminium housing enables the cell to fits in a standard 10mm cuvette holder.
- Tube dimensions: OD 1.5mm x ID 0.25mm x L 75mm.
- Has a z-dimension of 20mm.

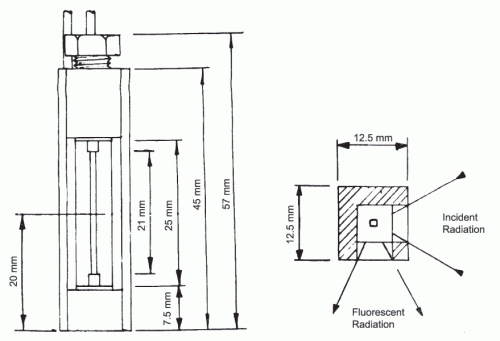

| Lightpath | Outer Length | Outer Width | Outer Height | Chamber Length | Chamber Width | Chamber Height | Z-Dimension | Capacity |
|---|---|---|---|---|---|---|---|---|
| 1mm | 12.5mm | 12.5mm | 45.0mm | 1.0mm | 1.0mm | 21.0mm | 20.0mm | 20µl |
