Semi-Micro Cuvettes
Spectrophotometer cells with semi-micro capacities (0.700-1.400ml)

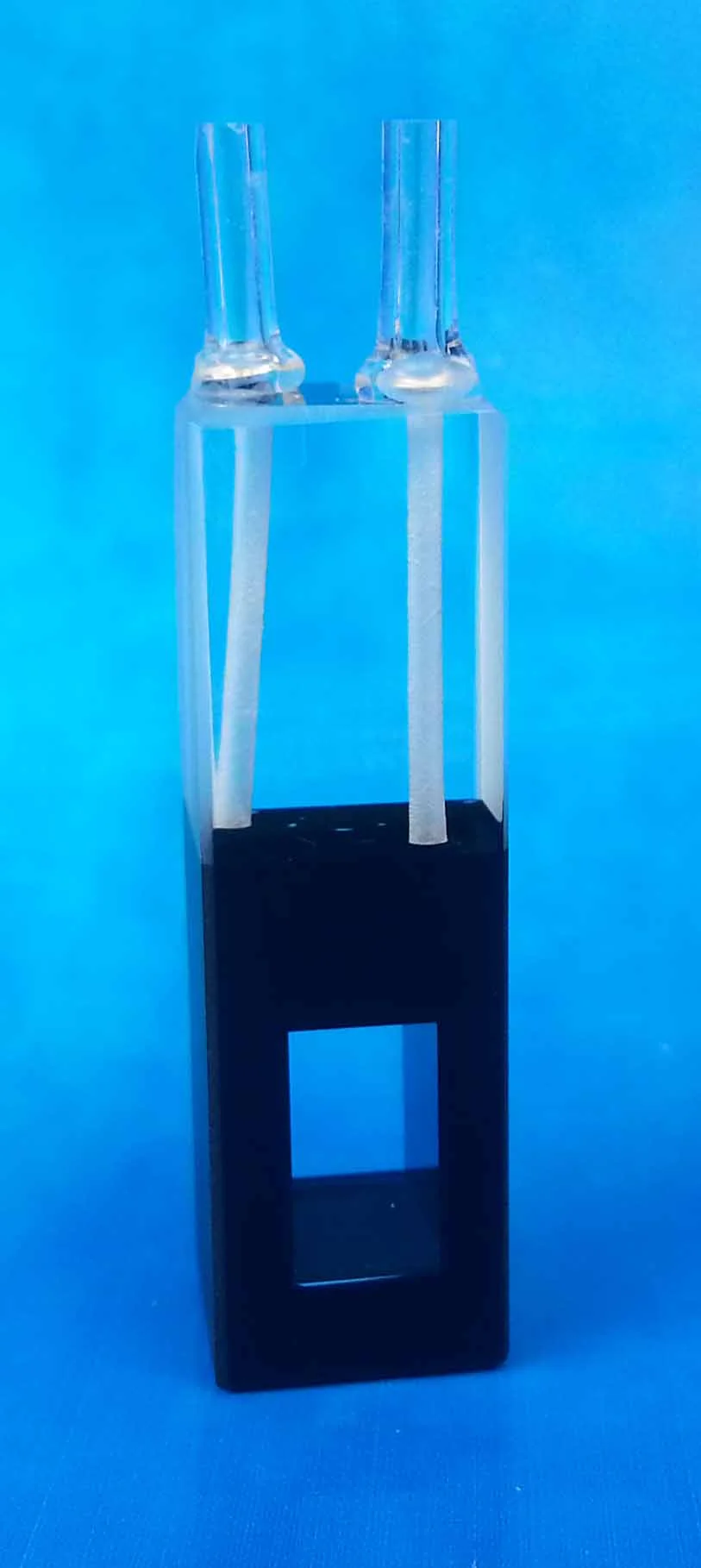

Type 502M Semi-Micro Black Flow Through Cell (Lightpath: 10mm)
Type 502M Semi-Micro Black Flow Through Cell (Lightpath: 10mm)
from $437.00
Black-walled semi-micro spectrophotometer flow cell with 6.5x11mm window
Lightpath:
Material:
Z-dimension:
Quantity:
Features of FireflySci Type 502M Semi-Micro Black Flow Through Cell:
- Highly accurate results, only need to test sample once.
- Accuracy and high quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
- Made by hand, ensuring high quality optical polishing with no defects.
- Each cell goes through a vigorous inspection process before leaving our factory.
- Fire-fused to ensure that cuvettes are robust and durable.
- Comes in Optical Glass & UV Quartz
- Available in 10mm lightpath with 2 z-dimensions (8.5 & 15mm)
- Contains black walls to block out stray light
- Two windows polished
- Inlet/outlet tube dimension: OD 4mm x ID 2mm
- Tubes are made of quartz
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Chamber Length | Chamber Width | Chamber Height | Z-Dimension | Capacity |
|---|---|---|---|---|---|---|---|---|---|
| 10mm | Flow Through | 12.5mm | 12.5mm | 38.5mm | 10.0mm | 6.5mm | 11.0mm | 8.5mm | 0.750ml |
| 10mm | Flow Through | 12.5mm | 12.5mm | 51.0mm | 10.0mm | 6.5mm | 11.0mm | 15.0mm | 0.750ml |
