Sub-Micro Cuvettes
Spectrophotometer cells with sub-micro capacities (0.010-0.350ml).

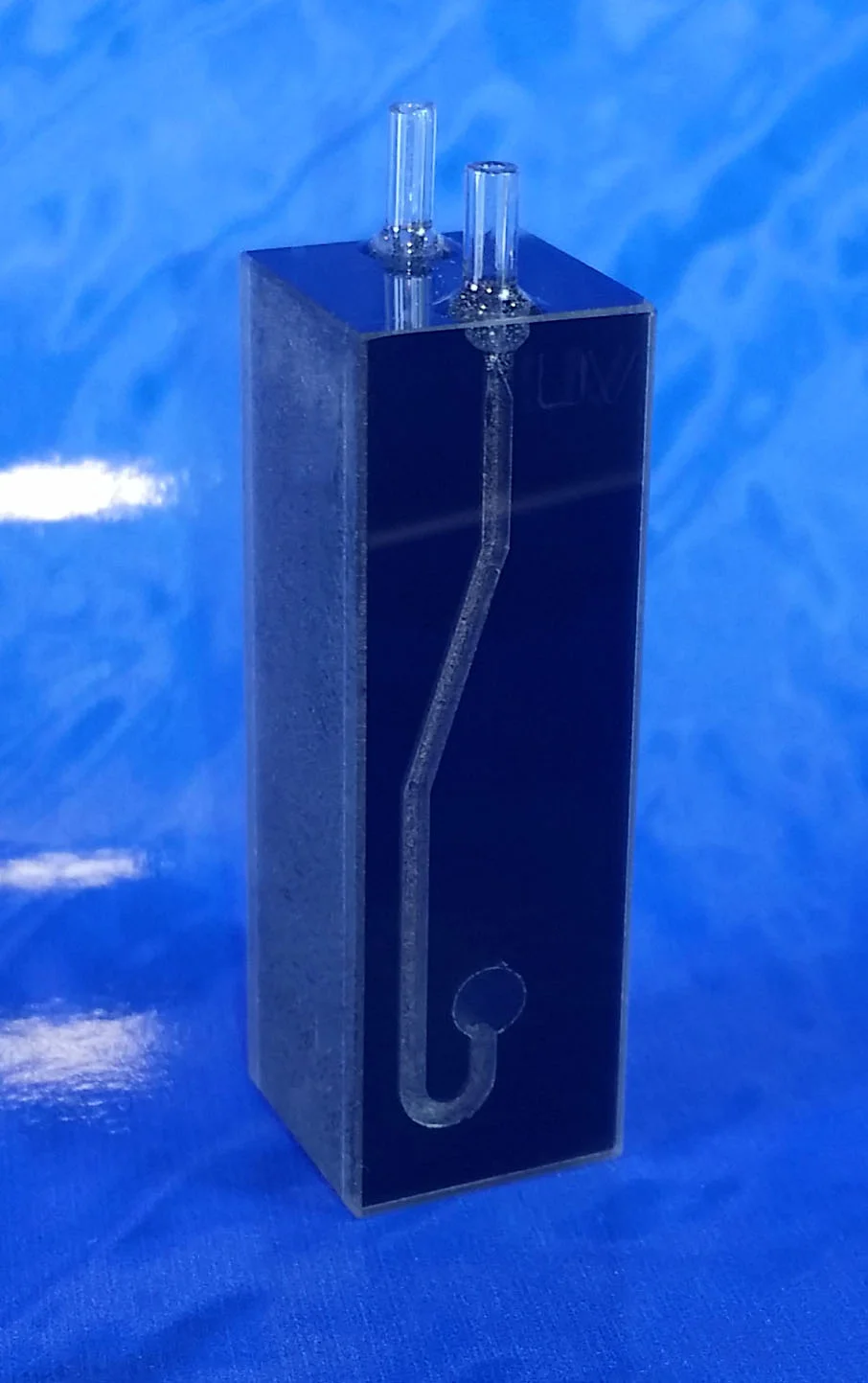

Type 500M Sub-Micro Black Flow Through Cell (Lightpath: 10mm)
Type 500M Sub-Micro Black Flow Through Cell (Lightpath: 10mm)
from $593.00
Black chambered spectrophotometer ultra-micro flow cell with cylindrical chamber.
Lightpath:
Material:
Z-Dimension:
Quantity:
Features of FireflySci Type 500M Sub-Micro Black Flow Through Cell:
- Highly accurate results, only need to test sample once.
- Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
- Made by hand, ensuring high quality optical polishing with no defects.
- Each cell goes through a vigorous inspection process before leaving our factory.
- Fire-fused to ensure that cuvettes are robust and durable.
- Comes in several different materials: (UV Quartz and IR Quartz)
- Available in 10mm lightpath
- Two windows polished
- Inlet/outlet tube dimension: OD 2mm x ID 1mm x L 5mm
- Tubes are made of quartz
- Contains a z-dimension of 8.5mm
| Lightpath | Outer Length | Outer Width | Outer Height | Chamber Length | Chamber Width | Z-Dimension | Capacity |
|---|---|---|---|---|---|---|---|
| 10mm | 12.5mm | 12.5mm | 38.0mm | 10.0mm | 3.0mm | 8.5mm | 70µl |
