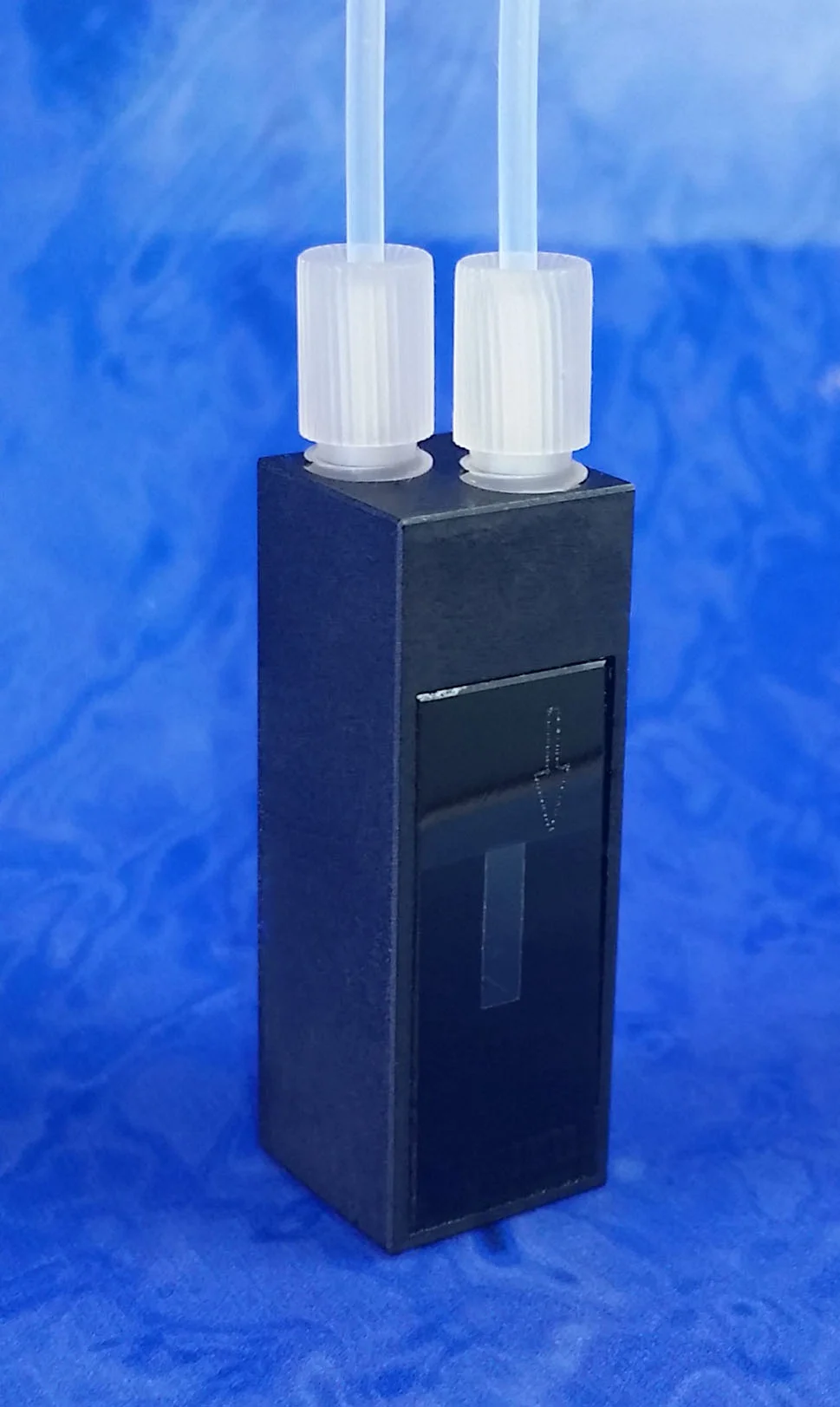

Type 601 Sub-Micro Tablet Dissolution Cell with PTFE Tubing and 2x5mm Window (Capacities: 10-100µl)


Type 601 Sub-Micro Tablet Dissolution Cell with PTFE Tubing and 2x5mm Window (Capacities: 10-100µl)

from $576.00

FireflySci tablet dissolution cell with a 2x5mm window. These cells can be used for most flow through applications.

Lightpath:
Material:
Z-dimension:
Quantity:
Add To Cart

Features of FireflySci Type 601 Sub-Micro Tablet Dissolution Cell:

  • Highly accurate results, only need to test sample once.
  • Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
  • Made by hand, ensuring high quality optical polishing with no defects.
  • Each cell goes through a vigorous inspection process before leaving our factory.
  • Fire-fused to ensure that cuvettes are robust and durable.
  • Available in UV Quartz.
  • Comes with M6 threaded connectors and 400mm of PTFE tubing
  • Dimensions of tubing: OD-1.6mm, ID-0.8mm
  • All cells and tubing tested to 5 bars of pressure (75psi).
  • In metal housing
  • All black quartz- size of polished area is 2x5mm
  • Two windows optically polished.
LightpathTopOuter LengthOuter WidthOuter HeightChamber LengthChamber WidthChamber HeightZ-dimensionCapacity
1mmFlow Through12.5mm12.5mm35.0mm1.0mm2.0mm5.0mm8.5mm10µl
1mmFlow Through12.5mm12.5mm35.0mm1.0mm2.0mm5.0mm15.0mm10µl
2mmFlow Through12.5mm12.5mm35.0mm2.0mm2.0mm5.0mm8.5mm20µl
2mmFlow Through12.5mm12.5mm35.0mm2.0mm2.0mm5.0mm15.0mm20µl
5mmFlow Through12.5mm12.5mm35.0mm5.0mm2.0mm5.0mm8.5mm50µl
5mmFlow Through12.5mm12.5mm35.0mm5.0mm2.0mm5.0mm15.0mm50µl
10mmFlow Through12.5mm12.5mm35.0mm10.0mm2.0mm5.0mm8.5mm100µl
10mmFlow Through12.5mm12.5mm35.0mm10.0mm2.0mm5.0mm15.0mm100µl
